Features
800 – 1000 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
AMPS, GSM, WCDMA, LTE Band
Tape and Reel Option
Specifications

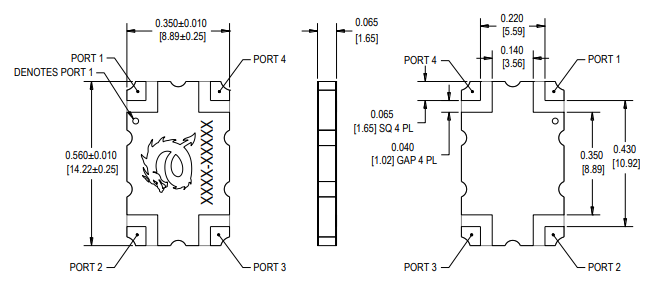

Size: .560 x .350 inches
Frequency: 800-1000 MHz
Power: 175 W
Insertion Loss: .12 dB
Amplitude Balance: ± .2
Isolation: 25 dB
VSWR: 1.15
Phase Balance: ± 2
