XCL101C201ER-G DC/DC轉換器Torex
發布時間：2024-05-22 09:04:47 瀏覽：5609
XCL101系列DC/DC轉換器是Torex一種高度集成的升壓轉換器，它將線圈和控制IC集成在一個超小型的封裝中，尺寸僅為2.5 mm x 2.0
mm，高度為1.0 mm。這種設計使得XCL101系列非常適合空間受限的應用。
該系列轉換器的主要特點包括：
- 輸入電壓范圍：0.7V至5.5V，這使得它非常適合使用單節堿性電池或鎳氫電池的設備。
- 輸出電壓設置：輸出電壓可以在1.8V至5.0V的范圍內以0.1V的間隔進行設置，精度為±2.0%。
- 高效率：采用PFM(脈沖頻率調制)控制的同步整流方式，有效降低了消耗電流，提高了轉換效率。
-
類型選擇：提供兩種類型，A型和B型在CE(芯片使能)信號為低電壓時停止升壓工作，并切斷輸入與輸出之間的導通;C型則在CE為低電壓時保持輸入和輸出之間的導通狀態。
- 輸出電流：在輸出電壓為3.3V，輸入電壓為1.8V時，輸出電流可達80mA。
- 低消耗電流：在輸入電壓等于輸出電壓加0.5V時，消耗電流僅為6.3μA。
- 控制方式：采用PFM控制，開關電流為350mA。
- 功能：具備輸入旁路模式或負載切斷功能。

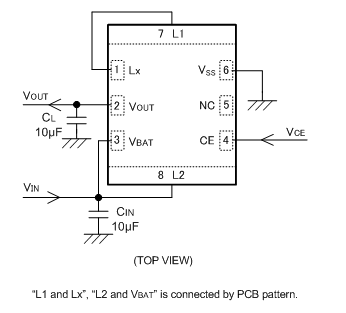

- 外接元件：僅需增加兩個陶瓷電容即可構成完整的升壓電源電路，簡化了電路設計并減少了噪聲和錯誤動作。
- 工作溫度范圍：-40℃至85℃，適用于廣泛的溫度環境。
- 環保：符合環保要求，對應EU RoHS規格，無鉛。
產品型號：
| XCL101A181BR-G | XCL101B351BR-G | XCL101A431BR-G | XCL101C271BR-G |
| XCL101A181ER-G | XCL101B351ER-G | XCL101A431ER-G | XCL101C271ER-G |
| XCL101A191BR-G | XCL101B361BR-G | XCL101A441BR-G | XCL101C281BR-G |
| XCL101A191ER-G | XCL101B361ER-G | XCL101A441ER-G | XCL101C281ER-G |
| XCL101A201BR-G | XCL101B371BR-G | XCL101A451BR-G | XCL101C291BR-G |
| XCL101A201ER-G | XCL101B371ER-G | XCL101A451ER-G | XCL101C291ER-G |
| XCL101A211BR-G | XCL101B381BR-G | XCL101A461BR-G | XCL101C301BR-G |
| XCL101A211ER-G | XCL101B381ER-G | XCL101A461ER-G | XCL101C301ER-G |
| XCL101A221BR-G | XCL101B391BR-G | XCL101A471BR-G | XCL101C311BR-G |
| XCL101A221ER-G | XCL101B391ER-G | XCL101A471ER-G | XCL101C311ER-G |
| XCL101A231BR-G | XCL101B401BR-G | XCL101A481BR-G | XCL101C321BR-G |
| XCL101A231ER-G | XCL101B401ER-G | XCL101A481ER-G | XCL101C321ER-G |
| XCL101A241BR-G | XCL101B411BR-G | XCL101A491BR-G | XCL101C331BR-G |
| XCL101A241ER-G | XCL101B411ER-G | XCL101A491ER-G | XCL101C331ER-G |
| XCL101A251BR-G | XCL101B421BR-G | XCL101A501BR-G | XCL101C341BR-G |
| XCL101A251ER-G | XCL101B421ER-G | XCL101A501ER-G | XCL101C341ER-G |
| XCL101A261BR-G | XCL101B431BR-G | XCL101B181BR-G | XCL101C351BR-G |
| XCL101A261ER-G | XCL101B431ER-G | XCL101B181ER-G | XCL101C351ER-G |
| XCL101A271BR-G | XCL101B441BR-G | XCL101B191BR-G | XCL101C361BR-G |
| XCL101A271ER-G | XCL101B441ER-G | XCL101B191ER-G | XCL101C361ER-G |
| XCL101A281BR-G | XCL101B451BR-G | XCL101B201BR-G | XCL101C371BR-G |
| XCL101A281ER-G | XCL101B451ER-G | XCL101B201ER-G | XCL101C371ER-G |
| XCL101A291BR-G | XCL101B461BR-G | XCL101B211BR-G | XCL101C381BR-G |
| XCL101A291ER-G | XCL101B461ER-G | XCL101B211ER-G | XCL101C381ER-G |
| XCL101A301BR-G | XCL101B471BR-G | XCL101B221BR-G | XCL101C391BR-G |
| XCL101A301ER-G | XCL101B471ER-G | XCL101B221ER-G | XCL101C391ER-G |
| XCL101A311BR-G | XCL101B481BR-G | XCL101B231BR-G | XCL101C401BR-G |
| XCL101A311ER-G | XCL101B481ER-G | XCL101B231ER-G | XCL101C401ER-G |
| XCL101A321BR-G | XCL101B491BR-G | XCL101B241BR-G | XCL101C411BR-G |
| XCL101A321ER-G | XCL101B491ER-G | XCL101B241ER-G | XCL101C411ER-G |
| XCL101A331BR-G | XCL101B501BR-G | XCL101B251BR-G | XCL101C421BR-G |
| XCL101A331ER-G | XCL101B501ER-G | XCL101B251ER-G | XCL101C421ER-G |
| XCL101A341BR-G | XCL101C181BR-G | XCL101B261BR-G | XCL101C431BR-G |
| XCL101A341ER-G | XCL101C181ER-G | XCL101B261ER-G | XCL101C431ER-G |
| XCL101A351BR-G | XCL101C191BR-G | XCL101B271BR-G | XCL101C441BR-G |
| XCL101A351ER-G | XCL101C191ER-G | XCL101B271ER-G | XCL101C441ER-G |
| XCL101A361BR-G | XCL101C201BR-G | XCL101B281BR-G | XCL101C451BR-G |
| XCL101A361ER-G | XCL101C201ER-G | XCL101B281ER-G | XCL101C451ER-G |
| XCL101A371BR-G | XCL101C211BR-G | XCL101B291BR-G | XCL101C461BR-G |
| XCL101A371ER-G | XCL101C211ER-G | XCL101B291ER-G | XCL101C461ER-G |
| XCL101A381BR-G | XCL101C221BR-G | XCL101B301BR-G | XCL101C471BR-G |
| XCL101A381ER-G | XCL101C221ER-G | XCL101B301ER-G | XCL101C471ER-G |
| XCL101A391BR-G | XCL101C231BR-G | XCL101B311BR-G | XCL101C481BR-G |
| XCL101A391ER-G | XCL101C231ER-G | XCL101B311ER-G | XCL101C481ER-G |
| XCL101A401BR-G | XCL101C241BR-G | XCL101B321BR-G | XCL101C491BR-G |
| XCL101A401ER-G | XCL101C241ER-G | XCL101B321ER-G | XCL101C491ER-G |
| XCL101A411BR-G | XCL101C251BR-G | XCL101B331BR-G | XCL101C501BR-G |
| XCL101A411ER-G | XCL101C251ER-G | XCL101B331ER-G | XCL101C501ER-G |
| XCL101A421BR-G | XCL101C261BR-G | XCL101B341BR-G |
|
| XCL101A421ER-G | XCL101C261ER-G | XCL101B341ER-G |
|
