75W寬輸出電壓電源模塊XP power
發布時間：2024-01-11 17:21:26 瀏覽：5464

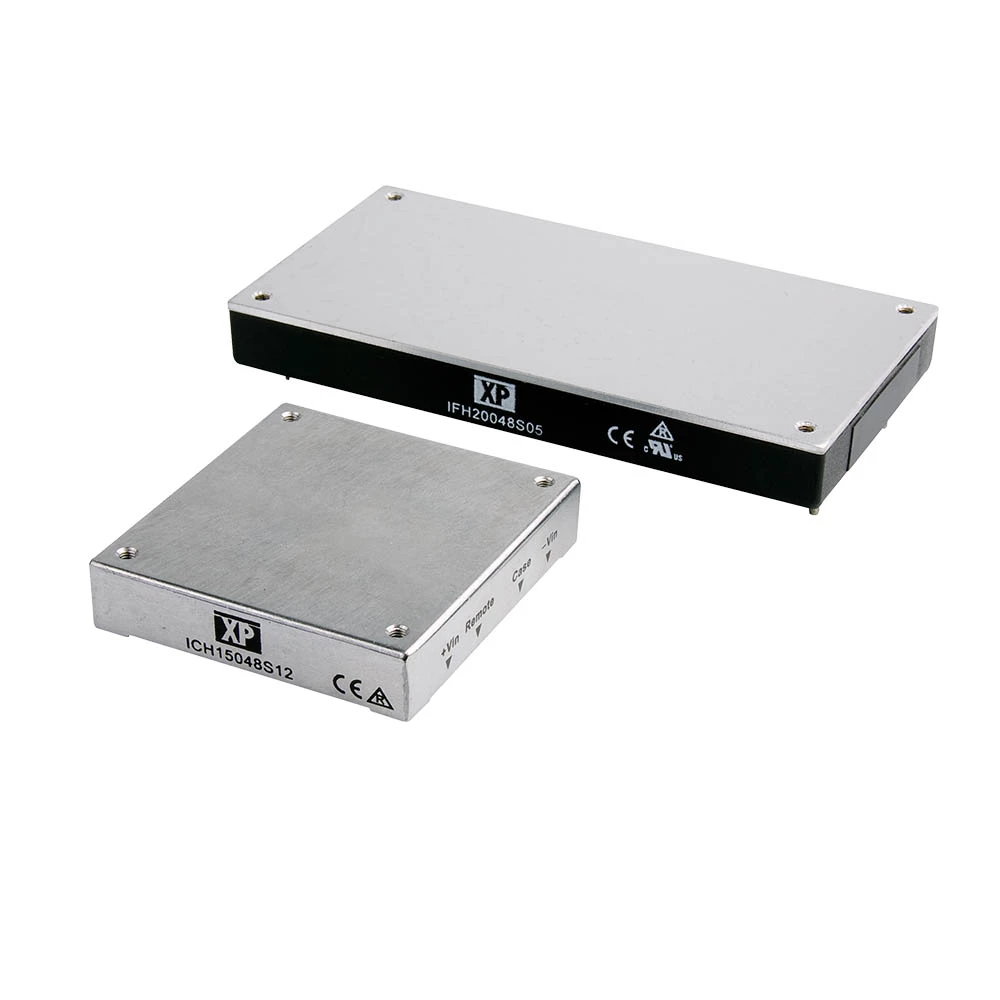

XP power的75W寬輸出電壓電源模塊是專門為鐵路交通應用需求設計的，滿足EN50155標準及EN50121-3-鐵路交通標準，主要用于制動和鐵路車輛所使用的電子產品。75W寬輸出電壓電源模塊放置在緊湊型磚形封裝中。
75W寬輸出電壓電源模塊有兩種寬輸入范圍：72伏直流電標稱電源為43伏至101伏直流電；110VDC標稱電源為66至160VDC。
75W寬輸出電壓電源模塊一般用于制動和鐵路車輛供電系統：監測；車門操控；安全控制系統監視器；通信和信息娛樂系統；視頻監控系統；出入和自動售票機；驅動控制；電源控制；信息系統；照明燈具；乘客設備充電USB端口；中央空調系統；衛生管理操控。
特征
調整單輸出
基材制冷?磚封裝
輸入范圍43V至101V和66V至160VDC
適用于鐵路交通應用的72V和110VDC標稱輸入
3kVAC隔離
遠程控制開/關和遙感
滿足EN50155和IEC60571
滿足EMC標準EN50121-3-2
可選擇散熱器
操作溫度-40°C至+105°C
MODEL NAME | POWER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT |
RCQ7572S05 | 75W | 43 to 101 VDC | 5V | 15A |
RCQ7572S12 | 75W | 43 to 101 VDC | 12V | 6.25A |
RCQ7572S15 | 75W | 43 to 101 VDC | 15V | 5A |
RCQ7572S24 | 75W | 43 to 101 VDC | 24V | 3.125A |
RCQ75110S05 | 75W | 66 to 160 VDC | 5V | 15A |
RCQ75110S12 | 75W | 66 to 160 VDC | 12V | 6.25A |
RCQ75110S15 | 75W | 66 to 160 VDC | 15V | 5A |
RCQ75110S24 | 75W | 66 to 160 VDC | 24V | 3.125A |
QHL75300S05 | 75W | 180 to 450 VDC | 5V | 15A |
QHL75300S12 | 75W | 180 to 450 VDC | 12V | 6.25A |
QHL75300S15 | 75W | 180 to 450 VDC | 15V | 5A |
QHL75300S24 | 75W | 180 to 450 VDC | 24V | 3.12A |
QHL75300S48 | 75W | 180 to 450 VDC | 48V | 1.56A |
MTC7528D12 | 75W | 10 to 50 VDC | 12V, -12V | 3.13A, 3.13A |
MTC7528D15 | 75W | 10 to 50 VDC | 15V, -15V | 2.5A, 2.5A |
MTC7528S05 | 75W | 10 to 50 VDC | 5V | 15A |
MTC7528S12 | 75W | 10 to 50 VDC | 12V | 6.25A |
MTC7528S15 | 75W | 10 to 50 VDC | 15V | 5A |
MTC7528S28 | 75W | 10 to 50 VDC | 28V | 2.7A |
MTC7528S3V3 | 75W | 10 to 50 VDC | 3.3V | 20A |
ICH7512S05 | 75W | 9 to 18 VDC | 5V | 15A |
ICH7512S12 | 75W | 9 to 18 VDC | 12V | 6.25A |
QSB7524S05 | 75W | 9 to 36 VDC | 5V | 12A |
ICH7512S15 | 75W | 9 to 18 VDC | 15V | 5A |
QSB7524S12 | 75W | 9 to 36 VDC | 12V | 6.25A |
ICH7512S24 | 75W | 9 to 18 VDC | 24V | 3.13A |
QSB7524S15 | 75W | 9 to 36 VDC | 15V | 5A |
ICH7512S3V3 | 75W | 9 to 18 VDC | 3.3V | 15A |
QSB7524S24 | 75W | 9 to 36 VDC | 24V | 3.12A |
ICH7524S05 | 75W | 18 to 36 VDC | 5V | 15A |
QSB7524S3V3 | 75W | 9 to 36 VDC | 3.3V | 12A |
ICH7524S12 | 75W | 18 to 36 VDC | 12V | 6.25A |
QSB7548S05 | 75W | 18 to 75 VDC | 5V | 12A |
ICH7524S15 | 75W | 18 to 36 VDC | 15V | 5A |
QSB7548S12 | 75W | 18 to 75 VDC | 12V | 6.25A |
ICH7524S24 | 75W | 18 to 36 VDC | 24V | 3.13A |
QSB7548S15 | 75W | 18 to 75 VDC | 15V | 5A |
ICH7524S3V3 | 75W | 18 to 36 VDC | 3.3V | 15A |
QSB7548S24 | 75W | 18 to 75 VDC | 24V | 3.12A |
ICH7524WS3V3 | 75W | 9 to 36 VDC | 3.3V | 15A |
QSB7548S3V3 | 75W | 18 to 75 VDC | 3.3V | 12A |
ICH7524WS05 | 75W | 9 to 36 VDC | 5V | 15A |
ICH7524WS12 | 75W | 9 to 36 VDC | 12V | 6.25A |
ICH7524WS15 | 75W | 9 to 36 VDC | 15V | 5A |
ICH7524WS24 | 75W | 9 to 36 VDC | 24V | 3.12A |
ICH7548WS48 | 75W | 9 to 36 VDC | 48V | 1.56A |
ICH7548S05 | 75W | 36 to 75 VDC | 5V | 15A |
ICH7548S12 | 75W | 36 to 75 VDC | 12V | 6.25A |
ICH7548S15 | 75W | 36 to 75 VDC | 15V | 5A |
ICH7548S24 | 75W | 36 to 75 VDC | 24V | 3.13A |
ICH7548S3V3 | 75W | 36 to 75 VDC | 3.3V | 15A |
ICH7548WS3V3 | 75W | 18 to 75 VDC | 3.3V | 15A |
ICH7548WS05 | 75W | 18 to 75 VDC | 5V | 15A |
ICH7548WS12 | 75W | 18 to 75 VDC | 12V | 6.25A |
ICH7548WS15 | 75W | 18 to 75 VDC | 15V | 5A |
ICH7548WS24 | 75W | 18 to 75 VDC | 24V | 3.12A |
