?AC-DC開關電源模塊開架式CINCON
發布時間：2023-04-07 16:55:50 瀏覽：1221

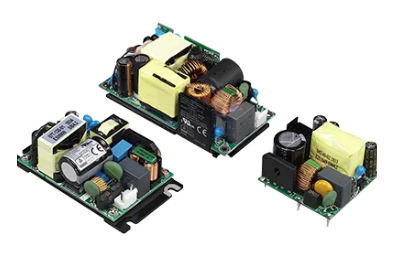

CINCON Open Frame AC-DC開關電源模塊提供射頻連接器型、基材制冷型和PCB安裝使用型，頻率范圍從6W到500W，是目前市面上功率密度相對較高的設備。全線產品已全部獲得全新ITE安全或醫療安全驗證。針對CINCON的部分新型號，它們滿足EN/IEC 60335-1標準規定，并具有鮮明的200%峰值負載性能。這種特殊200%峰值負載性能能夠滿足客戶在短期內突發性電力需求，目前能夠避免選擇其它超規格設備，降低成本和布局空間/占用面積損耗。
深圳市立維創展科技是CINCON電源模塊的代理經銷商，提供CINCON電源模塊的DC-DC轉換器、AC-DC電源、LED電源等，產品原裝進口，質量保障，極具價格優勢，歡迎咨詢
詳情了解CINCON電源請點擊：http://www.imhgnv.cn/article/2177.html
ITE/Industrial On-Board Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM04S | 4W | 85-305 | 3.3V, 5V, 12V, 15V, 24V | Altitude 5000m
Class II | 1.56x0.764x0.720
(PCB-mount)
1.62x0.83x0.787
(Encapsulated)
1.95.x0.71x0.689
(Wafer) |
CFM06S | 6W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V | Altitude 5000m
Class II | 1.555x0.764x0.720
(PCB-mount)
1.618x0.827x0.787
(Encapsulated)
1.950.x0.728x0.689
(Wafer) |
CFM12S | 12W | 90-264 | 5V, 9V, 12V, 15V, 24V | Altitude 5000m
Approval EN60335-1
Class II | 1.500x1.000x0.764
(PCB-mount)
1.600x1.1x0.772
(Encapsulated)
2.150x1.000x0.681
(Wafer) |
CFM20S | 20W | 90-264 | 5V, 12V, 15V, 24V, 48V | Altitude 5000m
Meets EN60335-1
Class II | 2.382x1.300x0.906
(PCB-mount)
2.482x1.402x0.933
(Encapsulated)
3.000x1.300x0.831
(Wafer) |
CFM25S | 25W | 90-264 | 5V, 12V, 15V, 24V, 36V, 48V | 2 Times Peak Load
Altitude 5000m
Approval EN60335-1
Class II | 2.000x1.100x0.980
(PCB-mount)
2.091x1.193x0.976
(Encapsulated)
2.776x1.100x0.906
(Wafer) |
CFM36S | 36W | 90-264 | 5V, 12V, 15V, 24V, 48V | Altitude 5000m
Class I & Class II | 3.00x1.50x1.100
(PCB-mount)
3.10x1.60x1.134
(Encapsulated)
3.00x1.50x1.000
(Wafer) |
CFM41S | 40W | 90-264 | 12V, 15V, 24V, 36V, 48V, 5V | 2 Times Peak Load
Altitude 5000m
Meets EN60335-1
Class II | 2.000x2.000x1.01
(PCB-mount)
2.14x2.14x1.035
(Encapsulated)
2.70x2.00x0.941
(Wafer) |
CFM61S | 60W | 90-264 | 5V, 12V, 15V, 24V, 36V, 48V | 2 Times Peak Load
Altitude 5000m
Class II | 2.000x2.000x1.346
(PCB-mount)
2.136x2.136x1.409
(Encapsulated)
2.700x2.000x1.291
(Wafer) |
ITE/Industrial Connector Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM20 | 20W | 85-264 | 3.3V, 5V, 9V, 12V, 15V, 24V | Low Profile | 3.501x2.000x1.000
(PCB-mount)
3.501x2.000x0.906
(Wafer) |
CFM40S | 40W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V | High Peak Load | 4.000x2.000x1.275
(PCB-mount)
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover) |
CFM40D/T | 40W | 90-264 | 3.3V/5V/-12V, 5V/12V, 5V/12V/-12V, 5V/12V/-5V, 5V/15V/-15V, 5V/24V, 5V/24V/-12V, 5V/24V/-5V, 5V/24V/12V | Dual & Triple Outputs | 4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover) |
CFM50S | 50W | 85-264 | 5V, 12V, 15V, 24V, 36V, 48V | Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ | 3.000x2.000x1.067 (Wafer)
3.000x2.00x1.142 (PCB Mount)
3.598x2.520x1.358 (Cover) |
CFM60S | 60W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V | High Peak Load | 4.000x2.000x1.275
(PCB-mount)
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover) |
CFM60T | 60W | 90-264 | 3.3V/5V/-12V, 5V/12V/-12V, 5V/15V/-15V, 5V/24V/-12V | Triple Outputs | 4.000x2.000x1.260
(Wafer) |
CFM70S | 70W | 85-264 | 5V, 12V, 15V, 24V, 36V, 48V | Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ | 3.000x2.000x1.067 (Wafer)
3.000x2.00x1.142 (PCB Mount)
3.598x2.520x1.358 (Cover)
2.170x3.140x1.201 (Encapsulated)
2.170x4.200x1.201 (Terminal Block)
2.170x4.200x1.783 (Din rail type) |
CFM80S | 80W | 90-264 | 5V, 12V, 15V, 24V, 48V | EN61000-3-2 Class A | 4.000x2.000x1.142
(PCB-mount)
4.000x2.000x1.07
(Wafer) |
CFM81S | 80W | 90-264 | 12V, 15V, 24V, 48V | 2 Times Peak Load
Altitude 5000m
Approval EN60335-1
ClassⅠ& Class Ⅱ | 3.000x2.000x1.339 (Wafer)
3.200x2.441x1.575 (Cover) |
ITE/Industrial Baseplate-cooled Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM130S | 130W | 80-264 | 12V, 18V, 19V, 24V, 36V, 48V | Altitude 5000m
ClassⅠ& Class Ⅱ | 3.000x2.000x1.20 (Open-frame)
3.598x2.000x1.299 (Baseplate)
3.598x2.520x1.358 (Cover) |
CFM150S | 150W | 90-264 | 12V, 24V, 28V, 36V, 48V | Altitude 5000m
Class I & Class II | 4.00x2.00x1.283
(Open-frame)
4.598x2.00x1.362
(Baseplate) |
CFM202S | 200W | 90-264 | 12V, 24V, 28V, 36V, 48V, 56V | Altitude 5000m
Approval EN60335-1
ClassⅠ& Class Ⅱ | 4.000x2.000x1.311 (Baseplate)
4.598x2.520x1.358 (Cover) |
CFM260S | 260W | 85-264 | 12V, 24V, 36V, 48V | Altitude 5000m
Class I | 4.000x2.000x1.441
(Open-frame)
4.598x2.000x1.520
(Baseplate)
4.598x2.520x1.594
(Cover) |
CFM300S | 300W | 90-264 | 12V, 24V, 36V, 48V | Altitude 5000m
Meets EN60335-1
Class I | 5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover) |
CFM400S | 400W | 80-264 | 12V, 18V, 24V, 36V, 48V, 54V | Altitude 5000m
Meets IEC/EN60335-1 | 5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover) |
CFM500S | 500W | 80-264 | 12V, 18V, 24V, 36V, 48V | Altitude 5000m
Meets EN60335-1 | 5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover) |
Medical Class II On-Board Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM21 | 20W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V | 2MOOP | 2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal) |
CFM21M | 20W | 90-264 | 5V, 9V, 12V, 15V, 24V | 2MOPP
Low Profile
Altitude 5000m | 2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal) |
Medical Class I Connector Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM40M | 40W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V | 2MOPP | 3.000x2.000x0.948
(PCB-mount)
3.000x2.000x0.909
(Wafer)
3.200x2.441x1.260
(Cover) |
CFM60M | 60W | 90-264 | 5V, 12V, 15V, 24V, 48V | 2MOPP | 4.000x2.000x1.100
(Wafer)
4.606x2.441x1.575
(Cover) |
CFM100M | 100W | 90-264 | 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 36V, 48V | 2MOPP | 5.000x3.000x1.050
(Wafer) |
CFM150M | 150W | 90-264 | 12V, 24V, 36V, 48V | 2MOPP | 5.000x3.000x1.050
(Wafer) |
Medical Baseplate-cooled Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM130M | 130W | 80-264 | 12V, 18V, 19V, 24V, 36V, 48V | 2MOPP
Altitude 5000m
Class I & Class II | 3.000x2.000x1.20
(Open-frame)
3.598x2.000x1.299
(Baseplate)
3.598x2.520x1.358
(Cover) |
CFM200M | 200W | 90-264 | 12V, 24V, 48V | 2MOPP
Class I & Class II | 4.000x2.000x1.480
(Baseplate)
4.606x2.441x1.594
(Cover) |
CFM300M | 300W | 90-264 | 12V, 24V, 36V, 48V | 2MOPP
Class I | 5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover) |
CFM500M | 500W | 80-264 | 12V, 18V, 24V, 36V, 48V | 2MOPP
Altitude 5000m
Meets EN60335-1
Class I | 5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover) |
