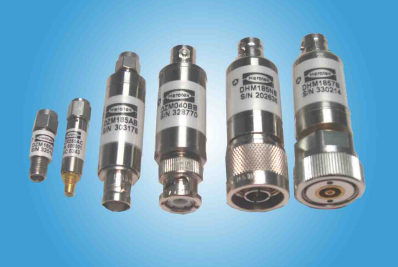

HEROTEK零偏置肖特基二極管檢波器100 KHz至50 GHz
發布時間：2020-10-26 16:06:45 瀏覽：2926
肖特基二極管是由金屬-半導體結構成的半導體二極管，具有正向電壓低、開關速度快的特點。與類似應用中的點接觸二極管相比，HEROTEK零偏置肖特基二極管具有更寬的動態范圍、更高的熱穩定性和更精確的平方律特性。HEROTEK零偏置肖特基二極管檢波器不僅可用于精密測試設備、發射機、電源、信號監測和導彈制導系統，還可用作微波功率探測器。
零偏肖特基二極管探測器的一個成熟應用是毫米波和亞毫米波功率檢測，在這種應用中可以有效地檢測和混合從微波到太赫茲的電磁輻射。
HEROTEK零偏置肖特基二極管探測器的特性
沒有偏差
匹配輸入以實現出色的駐波比
頻率響應非常平坦
非常高的靈敏度
HEROTEK零偏肖特基二極管探測器的應用
精密測試設備
變送器監控
電源和信號監控
雷達或?qū)椫茖?dǎo)系統
實驗室測試
深圳市立維創展科技有限公司，授權代理銷售HEROTEK產品，產品包括檢波器、放大器、限幅器、PIN開關、信號發生器等，HEROTEK產品滿足出色的性能，高可靠性和快速交付，歡迎咨詢。
詳情了解HEROTEK產品請點擊：http://www.imhgnv.cn/brand/47.html
或聯系我們的銷售工程師：0755-83050846 QQ: 3312069749
MODEL 1, 2 | FREQUENCY RANGE | MAXIMUM VSWR | MAXIMUM FLATNESS (± dB) | LOW LEVEL SENSITIVITY (mV / mW) | CONNECTOR | SIZE (INCHES) | OUTLINE |
INPUT | OUTPUT | LENGTH | DIA |
DZR124AA | 10 MHz – 12.4 GHz | 1.25:1 | 0.3 | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZR124AC | SMA (M) | SMC (M) | 1.47 | 0.32 | AC2 |
DZR185AA | 10 MHz – 18.5 GHz | 1.25:1 | 0.5 | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZR185AC | SMA (M) | SMC (M) | 1.47 | 0.32 | AC2 |
DZR265AA | 10 MHz – 26.5 GHz | 1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz) | 0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZR265AC | SMA (M) | SMC (M) | 1.47 | 0.32 | AC2 |
DZM020AA | 100 KHz - 2.0 GHz | 1.3:1 | 0.1 (per 100 KHz) 0.3 (overall) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM020BB | BNC (M) | BNC (F) | 2.48 | 0.68 | BB3 |
DZM040AA | 100 KHZ - 4.0 GHz | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM040BB | BNC (M) | BNC (F) | 2.48 | 0.68 | BB3 |
DZM124AA | 10 MHz – 12.4 GHz | 1.2:1 (to 4.5 GHz) 1.3:1 (to 7 GHz) 1.4:1 (to 12.4 GHz) | 0.2 (per octave) 0.5 (overall) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM124AB | SMA (M) | BNC (F) | 2.50 | 0.56 | AB3 |
DZM124NB | Type N (M) | BNC (F) | 2.46 | 0.75 | NB3 |
DZM185AA | 10 MHz – 18.5 GHz | 1.2:1(to 4 GHz) 1.5:1(to 18.5 GHz) | (per octave to 8 GHz) (for 10 MHz to 8 GHz) 0.5 (overall) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM185AB | SMA (M) | BNC (F) | 2.50 | 0.56 | AB13 |
DZM185AB2 | SMA (M) | BNC (F) | 1.89 | 0.39 | AB23 |
DZM185AC | SMA (M) | SMC (M) | 1.20 | 0.32 | AC1 |
DZM185NB | Type N (M) | BNC (F) | 2.46 | 0.75 | NB3 |
DZM1857B | APC-7 | BNC (F) | 2.59 | 0.75 | 7B3 |
MODEL 1, 2 | FREQUENCY RANGE | MAXIMUM VSWR | MAXIMUM FLATNESS (± dB) | LOW LEVEL SENSITIVITY (mV / mW) | CONNECTOR | SIIZE (INCHES) | OUTLINE |
INPUT | OUTPUT | LENGTH | DIA |
DZM265AA | 10 MHz-26.5 GHz | 1.2:1 (to 4 GHz) 1.5:1 (to 18 GHz) 1.8:1 (to 26.5 GHz) | 0.2 (per octave to 8 GHz) 0.5 (for 10 MHz to 18 GHz) 1.0 (overall) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM265AB | SMA (M) | BNC (F) | 1.89 | 0.39 | AB23 |
DZM265AC | SMA (M) | SMC (M) | 1.20 | 0.32 | AC1 |
DZM2653B | APC3.5 (M) | BNC (F) | 1.89 | 0.39 | 3B3 |
DZM2653C | APC3.5 (M) | SMC (M) | 1. 70 | 0.38 | 3C3 |
DZR400KA | 10 MHz – 40 GHz | 1.3:1 (to 18 GHz) 1.8:1 (to 40 GHz) | 0.3 (to 18 GHz) 0.6 (to 26 GHz) 1.0 (to 40 GHz) | 0.4 | K* (M) (2.9mm) | SMA (F) | 1.30 | 0.32 | C1 |
DZR400KB | K* (M) (2.9mm) | BNC (F) | 1.89 | 0.39 | KB3 |
DZR400KC | K* (M) (2.9mm) | SMC (M) | 1.35 | 0.32 | KC3 |
DZR50024A | 10 MHz – 50 GHz | 1.3:1 (to 18 GHz) 1.6:1 (to 26 GHz) 1.8:1 (to 40 GHz) 2.0:1 (to 50 GHz) | 0.3 (to 18 GHz) 0.6 (to 26 GHz) 0.8 (to 40 GHz) 1.0 (to 50 GHz) | 0.5 | 2.4mm (M) | SMA (F) | 1.32 | 0.32 | 24A3 |
DZR50024B | 2.4mm (M) | BNC (F) | 1.91 | 0.39 | 24B3 |
DZR50024C | 2.4mm (M) | SMC (M) | 1.36 | 0.32 | 24C3 |
DZ1018 | 1 GHz – 18.0 GHz | 8.0:1 (Typical) | 1.0 (Typical) | 1.8 | SMA (M) | SMA (F) | 1.16 | 0.32 | B |
DZ1026 | 1 GHz – 26.0 GHz | 8.0:1 (Typical) | 1.5 (Typical) | 1.6 | SMA (M) | SMA (F) | 1.16 | 0.32 | B |
